NOS Pinarello Cadore Frameset | 60 cm C-C | Red
Delivery in 2-6 business days – In stock and dispatched quickly.

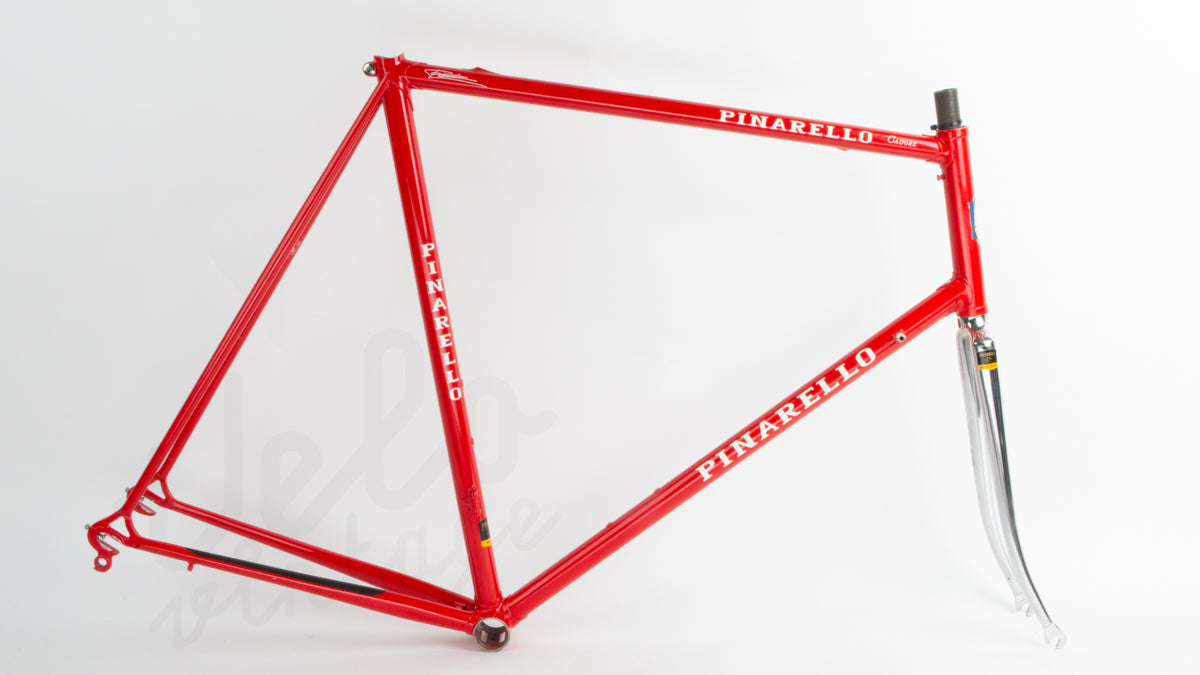

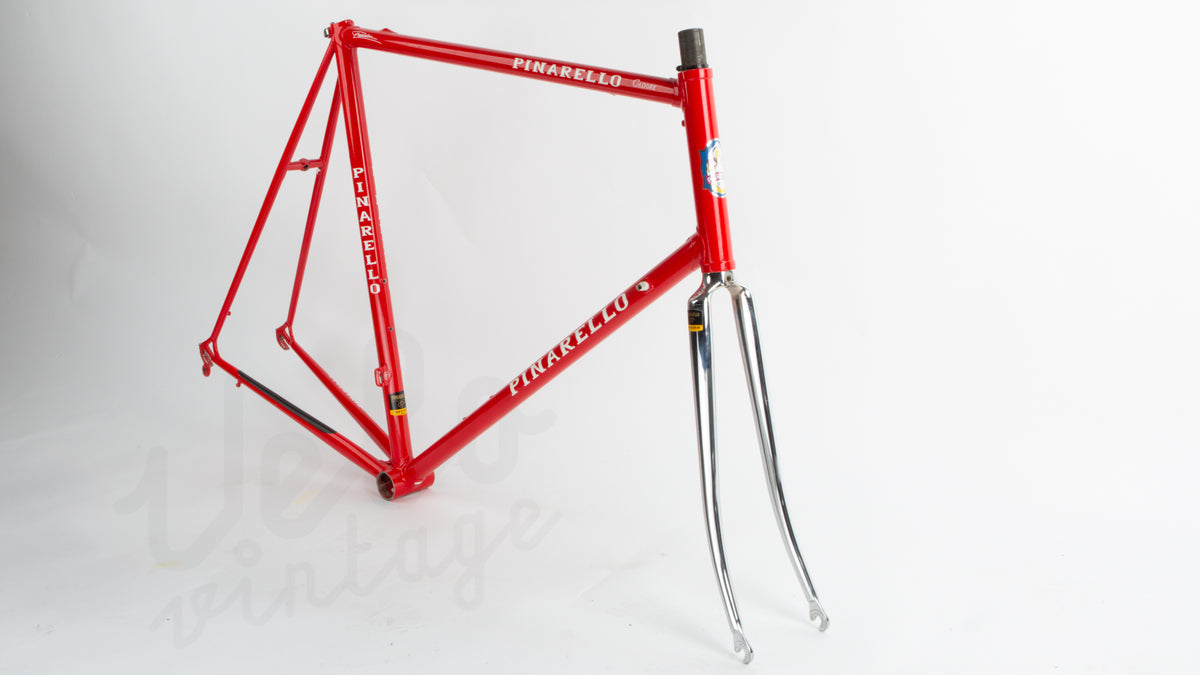

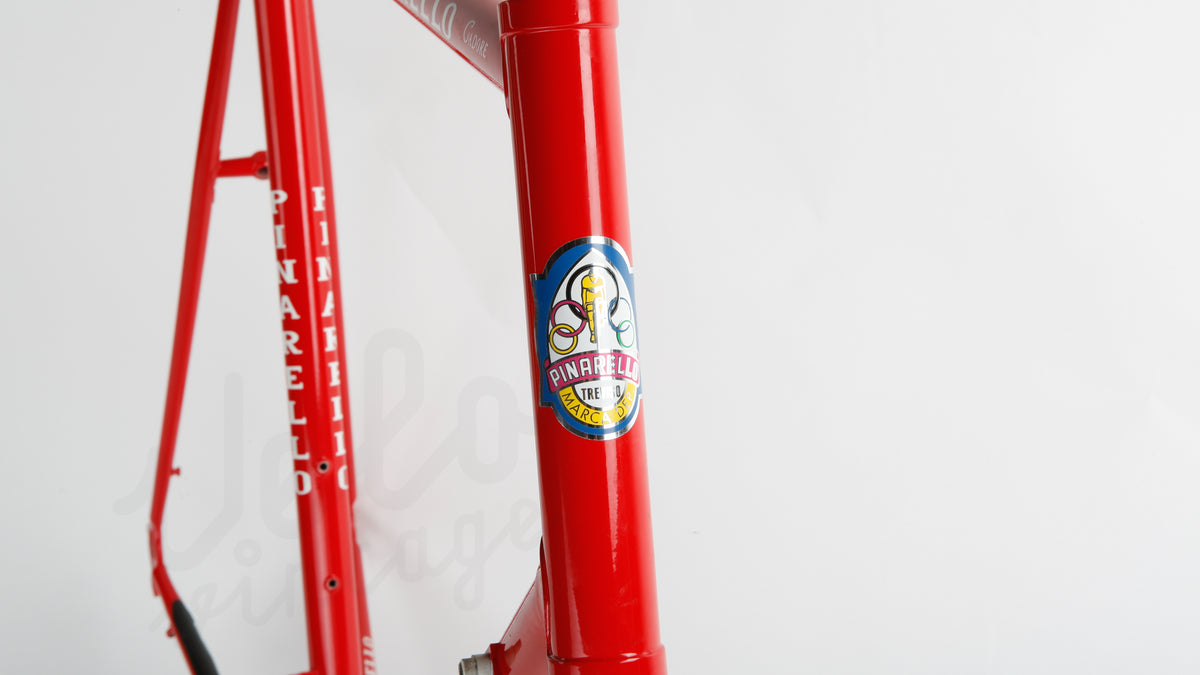

Classic Pinarello Cadore road bike frame made from Arché CMN carbon-manganese steel. The Cadore was part of Pinarello’s mid-range lineup in the late 1980s and early 1990s, combining Italian craftsmanship with a comfortable and well-balanced ride.
The frame features lugged steel construction and several details characteristic of high-quality frames from the period. The rear brake cable is routed internally through the top tube, creating a clean and elegant appearance, while the brazed-on front derailleur mount makes the frame compatible with braze-on front derailleurs without the need for a clamp.
With a 130 mm rear dropout spacing, the frame fits modern road wheels with 8-, 9-, 10-, and 11-speed Shimano or Campagnolo hubs, making it suitable for both classic restorations and modern retro builds.
The Arché CMN tubing is made from carbon-manganese steel and is known for its durability, comfort, and stable handling. The tubing was used on several of Pinarello’s high-quality models and represents classic Italian steel technology.
Description
Frame measurements
- Frame height: 60 cm (measured from the center of the bottom bracket to the center of the top tube)
- Top tube: 58 cm (center to center)
Specifications
-
- Model: Pinarello Cadore
- Material: Arché CMN carbon-manganese steel
- Construction: lugged steel frame

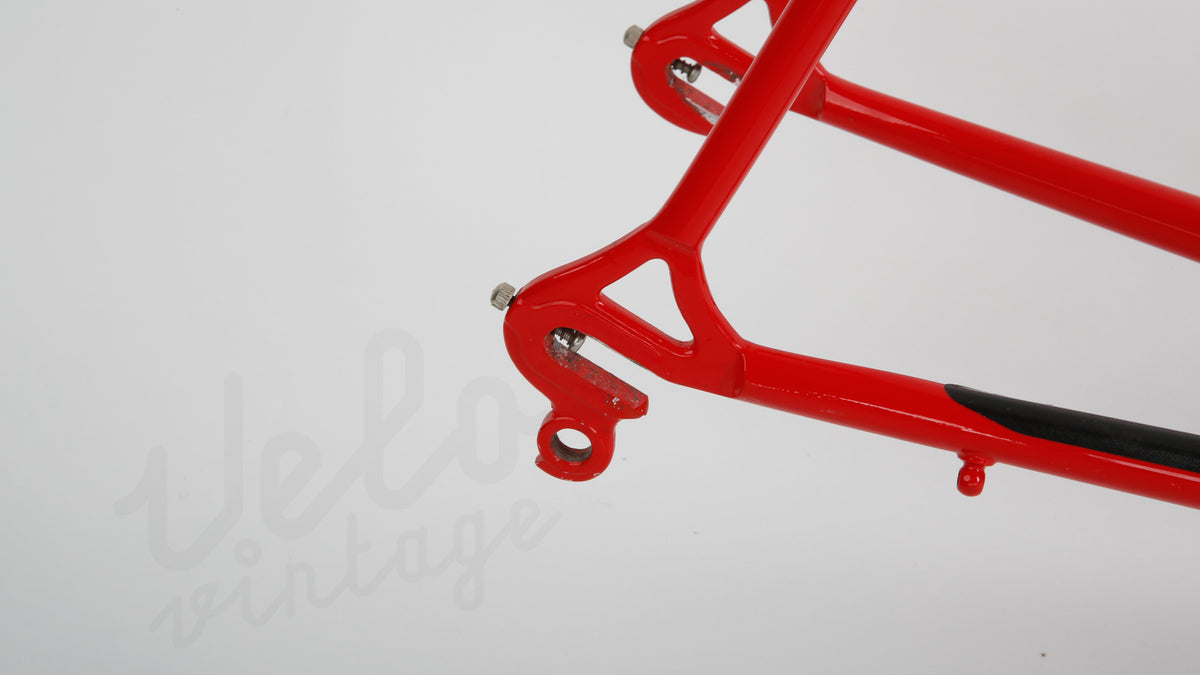

- Rear dropout spacing: 130 mm

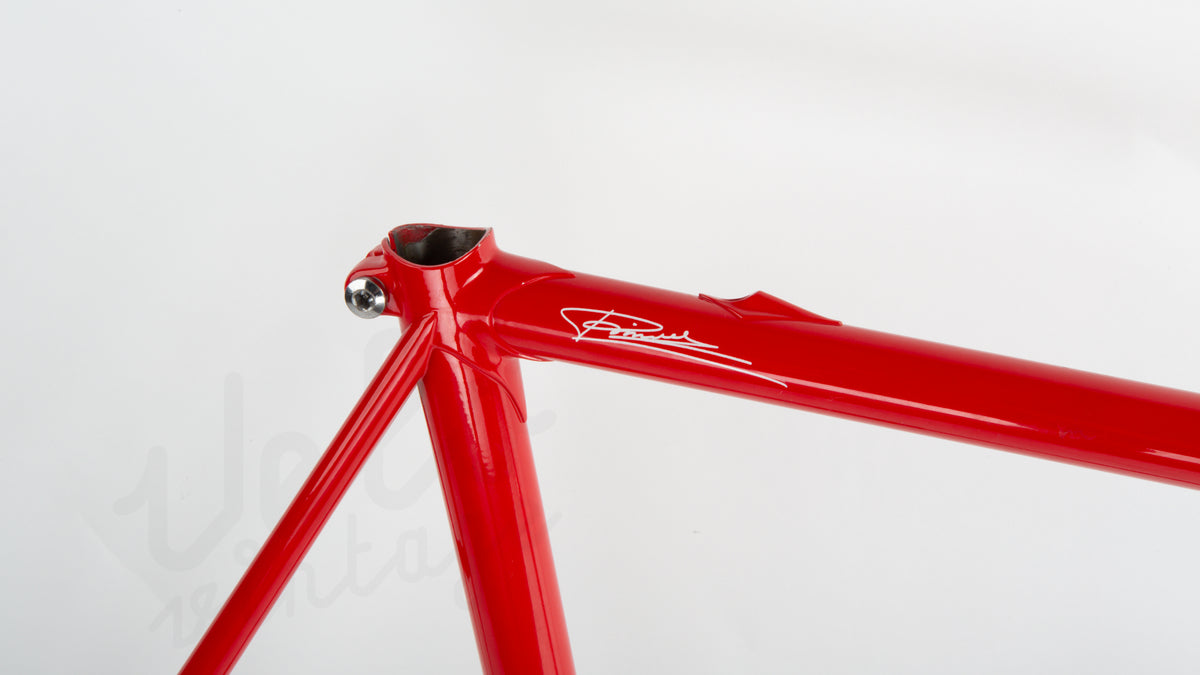

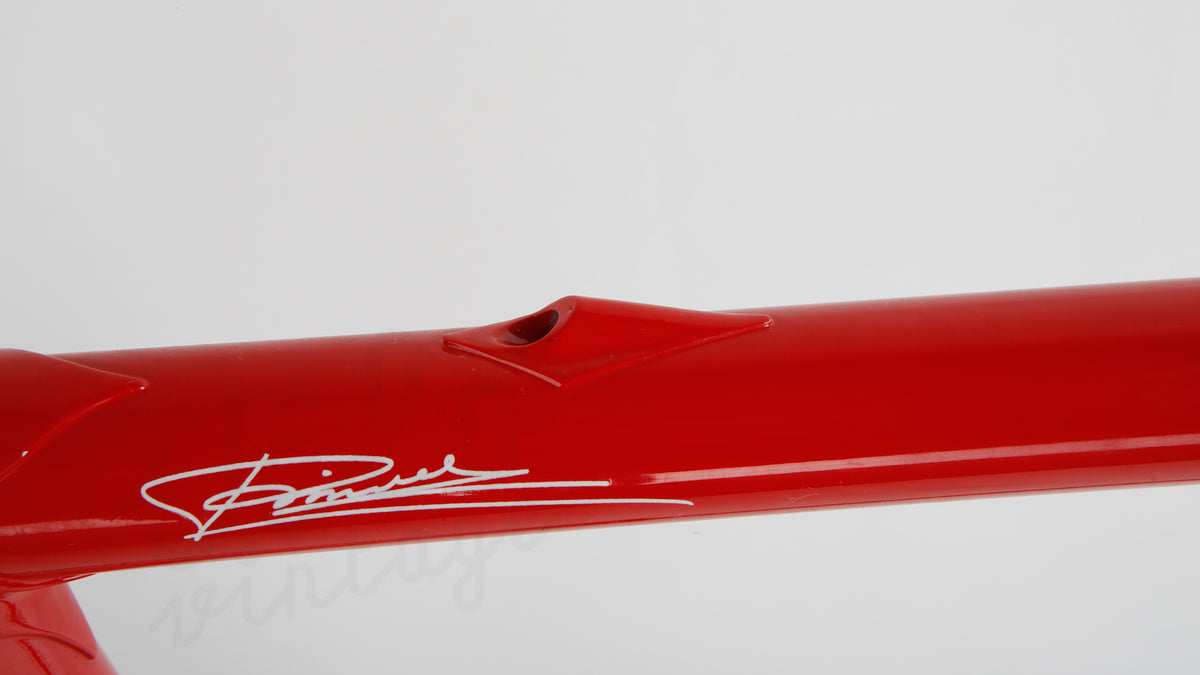

- Internal rear brake cable routing through the top tube

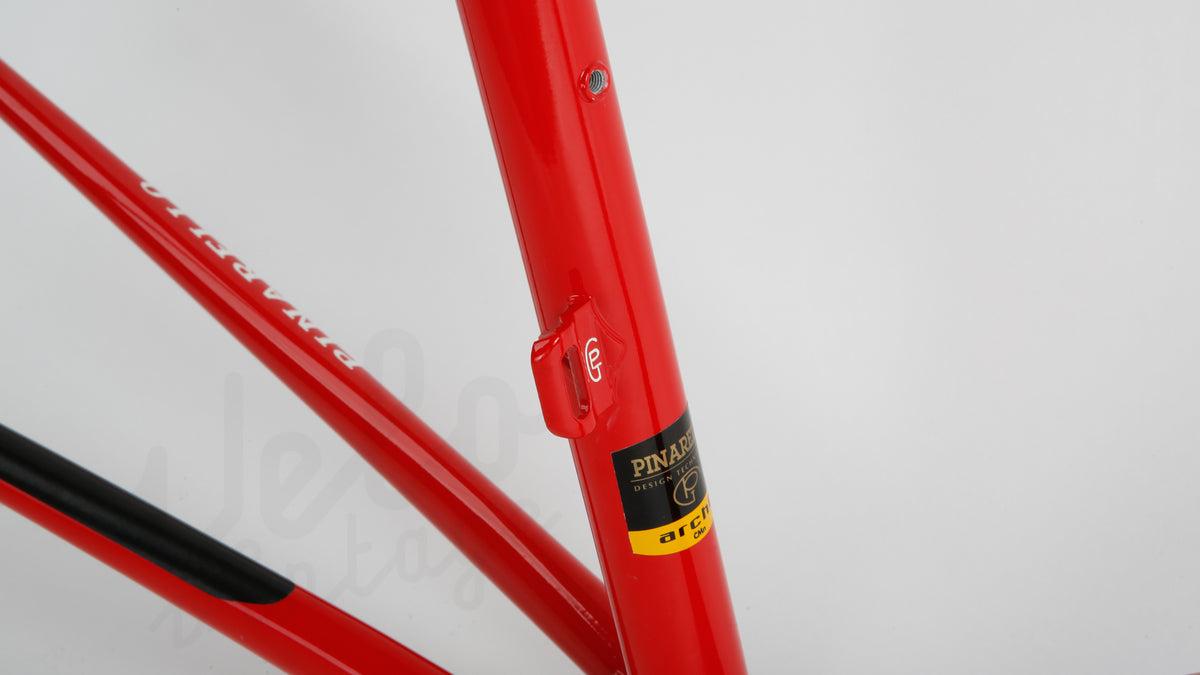

- Braze-on mount for front derailleur

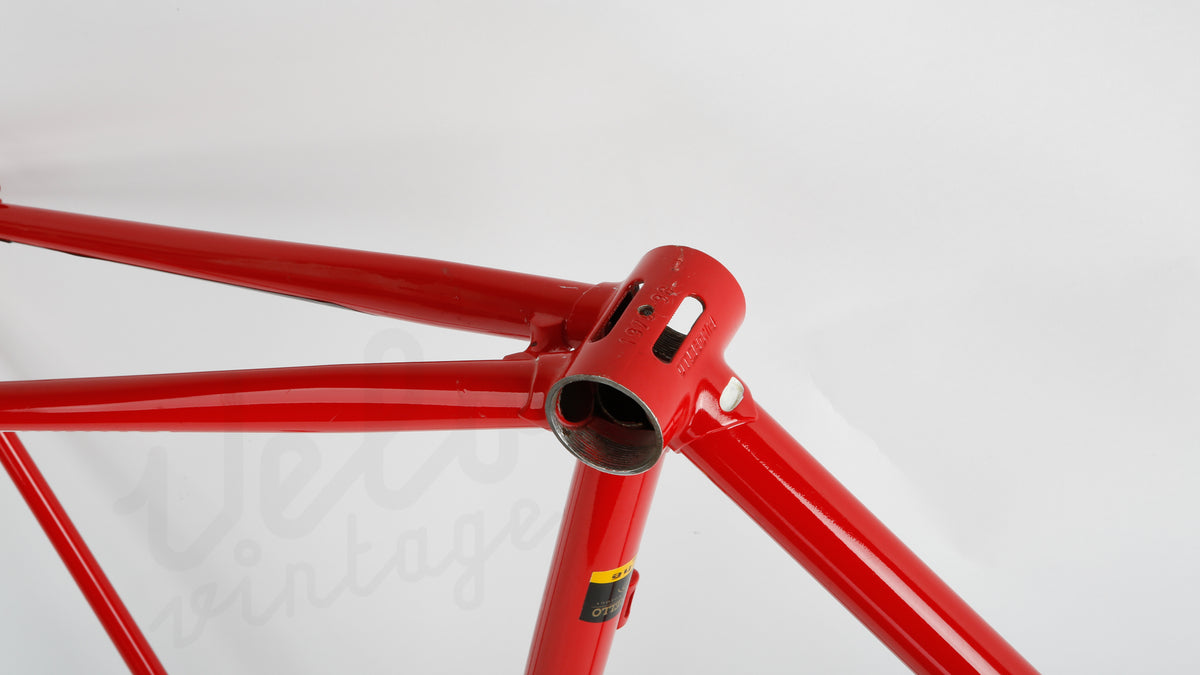

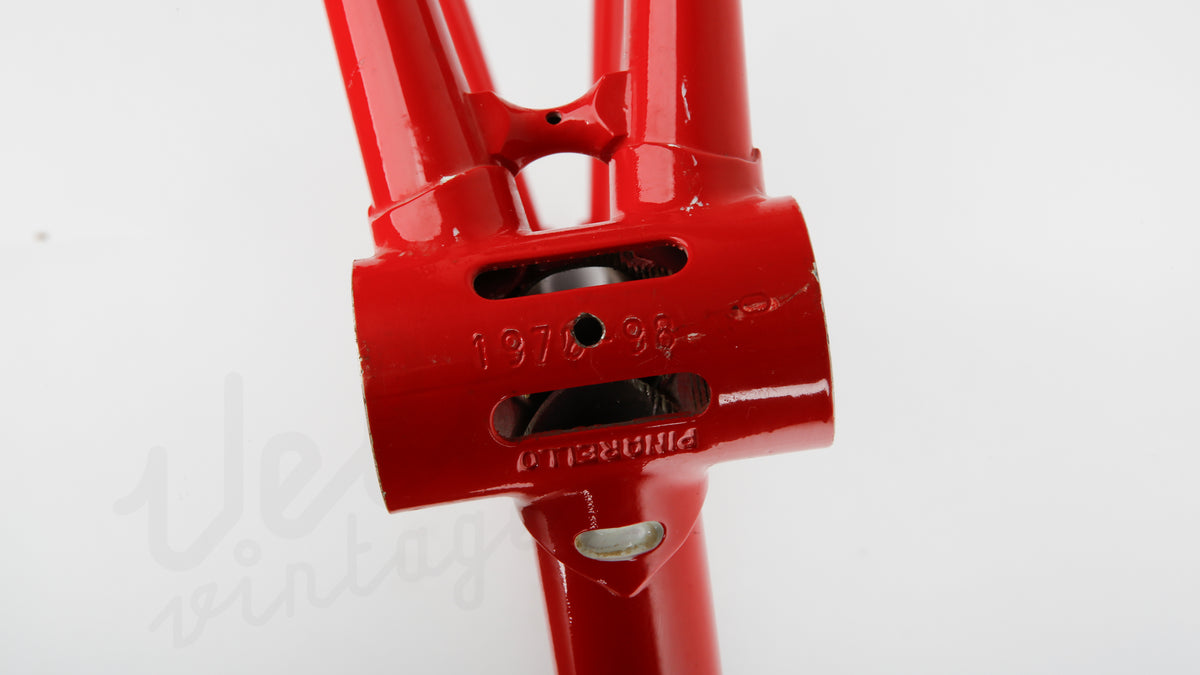

- Bottom bracket: Italian threading (36 x 24 TPI)

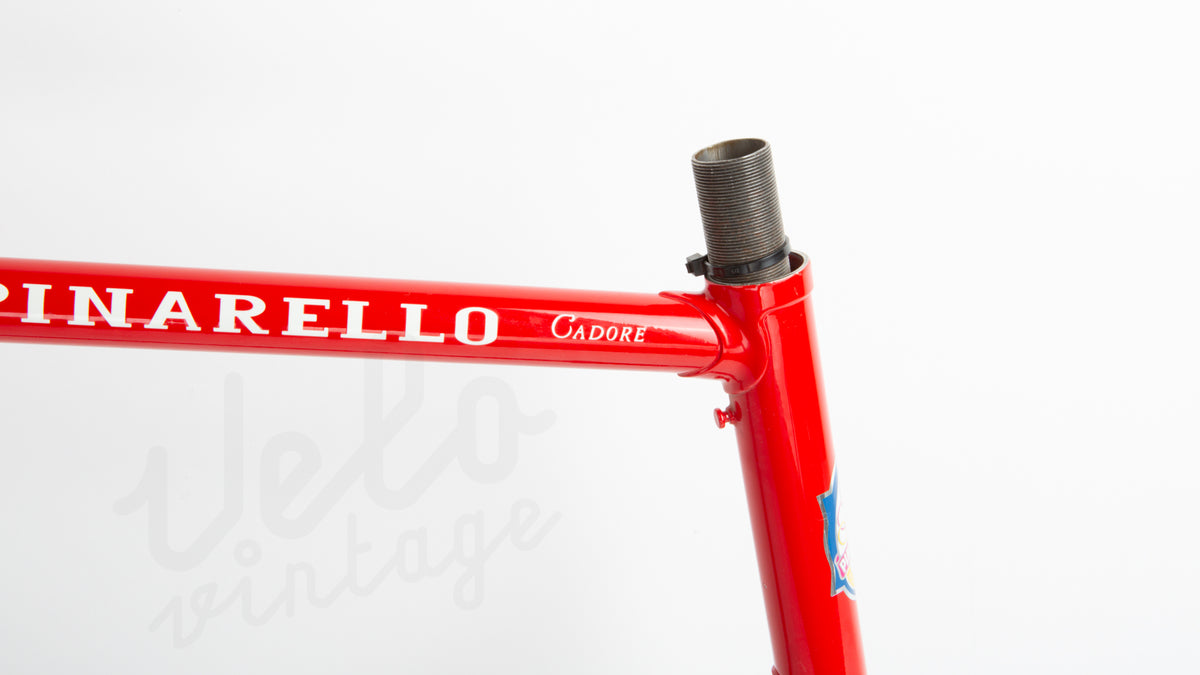

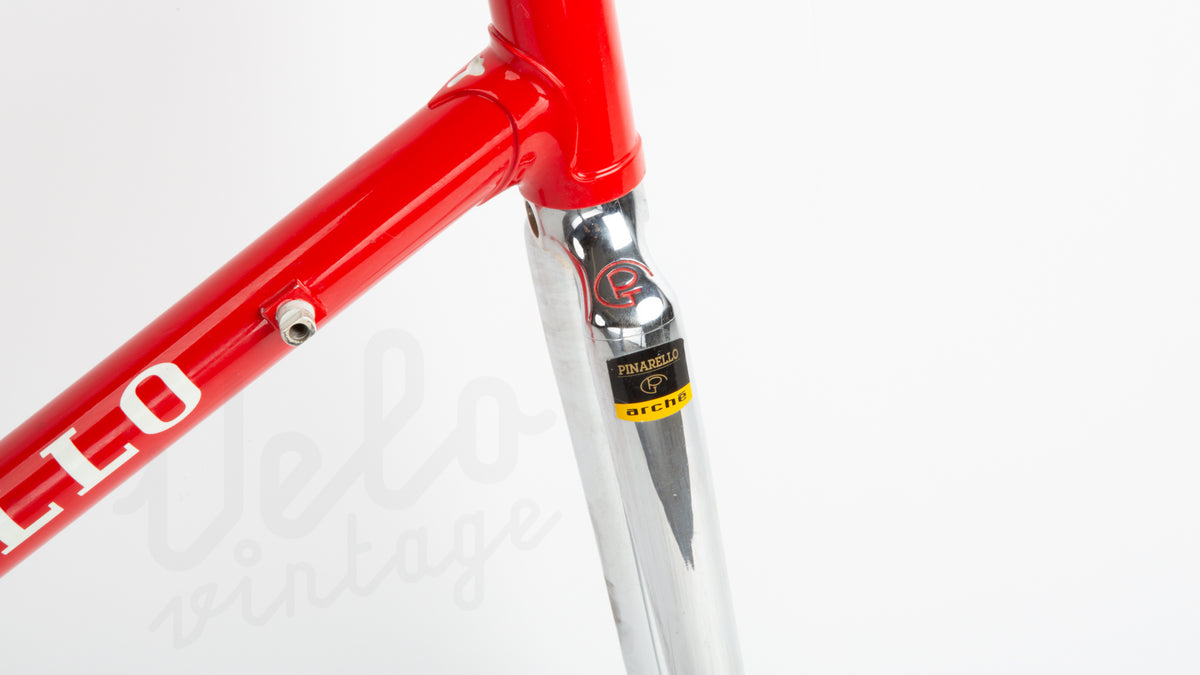

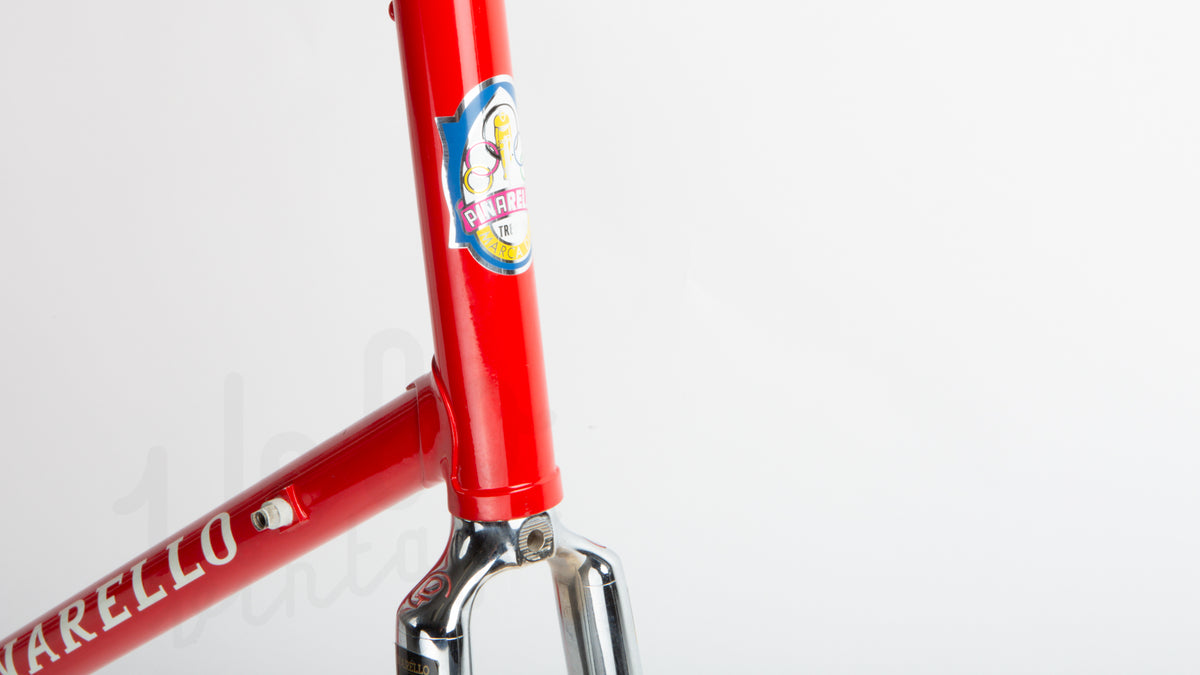

- Fork: 1" threaded
- Made in Italy
