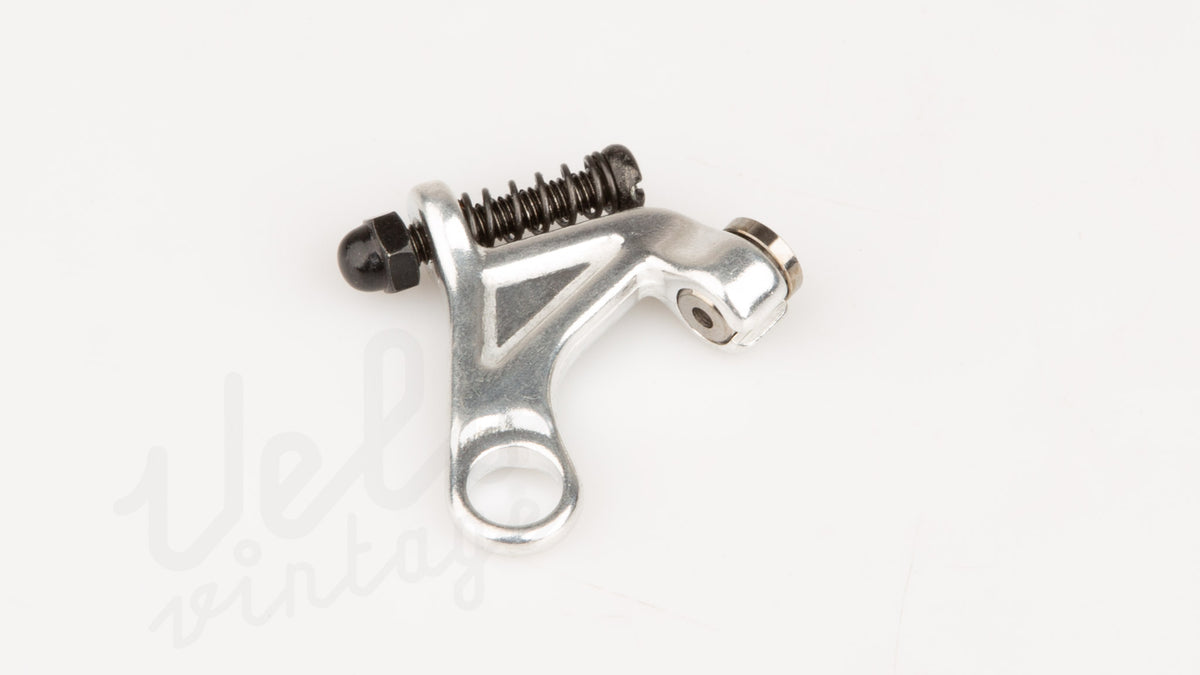

Dia-Compe 1267-2 Rear Brake Cable Stop "Cable Hanger" | Silver

Dia-Compe | 1267-2 Rear Cable Holder – Silver

Specifications:

• For rear brakes with cantilever or center-pull designs

• Mounts on the seat tube’s binder bolt

• Material: Cold-forged aluminum

• Color: Silver

• Inner diameter: 8 mm

• Cable offset: 25 mm

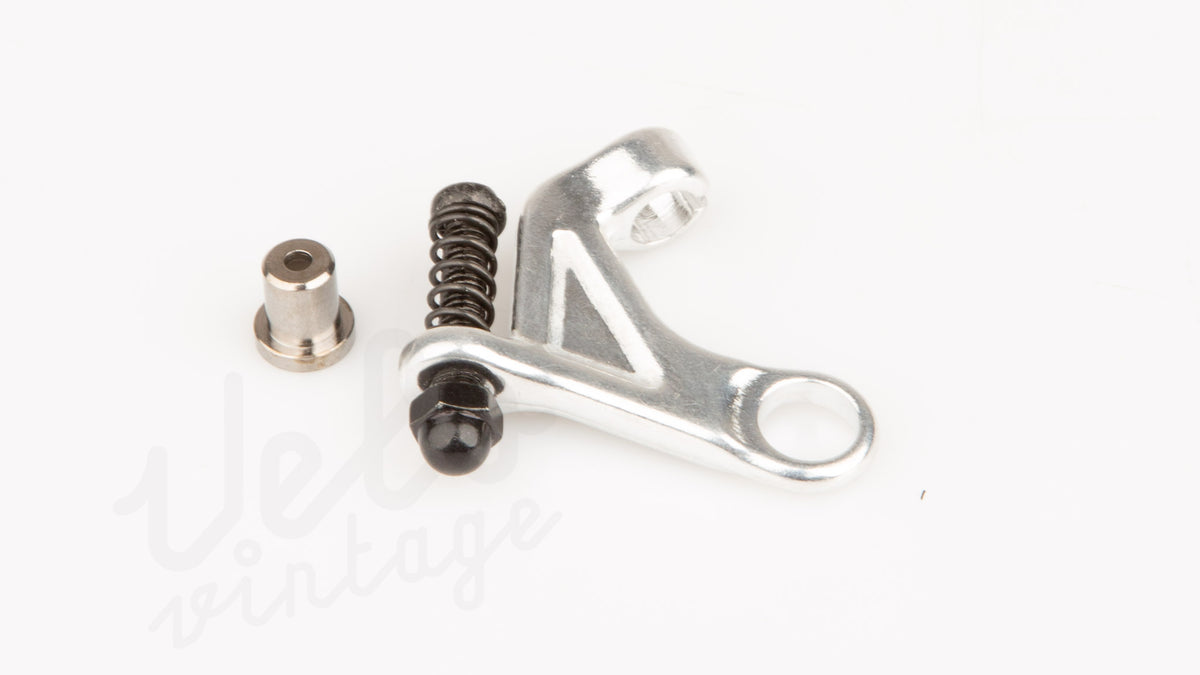

• Includes barrel adjuster and ferrule for cable routing angle

• Lightweight and corrosion-resistant construction

• Classic look – ideal for retro and touring bikes

Instructions for use:

The cable holder is mounted directly under the nut on the seat tube’s binder bolt. Once secured, route the brake cable into the cable stop, while the inner wire continues down to the rear brake. Use the integrated barrel adjuster to fine-tune the cable tension and achieve optimal braking performance. Ensure that the cable runs smoothly without kinks or sharp angles for smooth brake operation.
